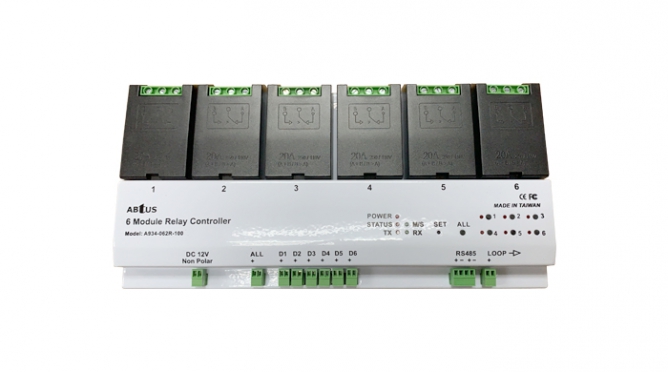

6 Module Relay Controller
A934-062R-100
The Lighting Controller holds up to 6 relays which can control up to 6 different zones. Each relay can be easily removed for maintenance or replacement purposes. As the relays are modularized independently, installer can simply replace the faulty relay in the event of a fault or during maintenance without the need to switch off all the lighting.
• Independent 6-way detachable relay module for easy maintenance
• Can be connected with regular wall switch to become a full double switch
• Each loop can be independently set and memorize the load size
• Can detect current is as low as 3W
• RS485 port for control and communication
• With power-off memory reply mode setting, the unit can resume in the last operation state or a full-off after power failure
• Can be mounted on a standard aluminum rail or directly onto walls
• Expandable by looping another unit and setting unique ID for each unit
| Relay Input Voltage: | 110V ~ 240V |
| Relay Maximum Load: | Single loop 20A (B connected to load/ A not connected to wall switch) |
| Single loop 10A (B connected to load/ A connected to wall switch) | |
| Controller Power Supply: | DC 12V 2A |
| Current Consumption: | >70mA(standby current), >450mA(operating current) |
| Control Port: | 1 x RS485 |
| 1x RS485 (Loop out) | |
| Dimension (W*H*D): | 285mm x 53.5mm x 143.5mm |
| Net Weight: | 1762g |
ds_A934-062R-100_2023-08Aug-03.pdf
