4K HDMI 2.0 Audio Extractor
AVC-B11P

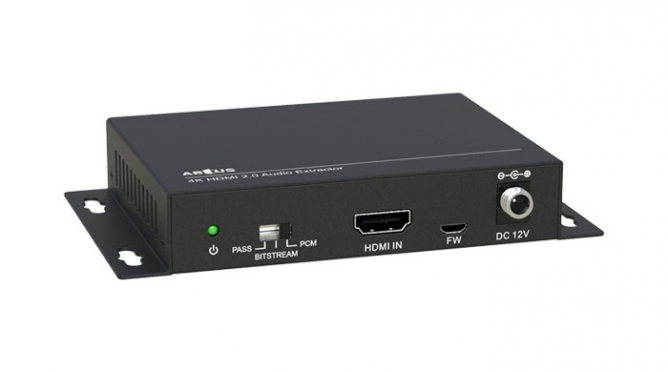

The AVC-B11P is a small-size HDMI 2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three kinds of audio outputs. It is designed to extract audio from 4K HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports. It supports up to 4K@60Hz 4:4:4 HDR, EDID & CEC passthrough, and the transmission rate is up to 18Gbps. Moreover, there are three audio modes can be chosen in order to be compatible with various audio processing device.
- Supports stereo balanced L/R, analog RCA, and coaxial digital audio output ports.
- Supports three audio modes PASS, BITSTREAM, and PCM.
- HDMI input supports up to HDCP 2.2, and the output supports up to HDCP 2.2
- Supports HDMI 2.0 4K@60Hz 4:4:4 HDR, EDID & CEC pass-through.
- The transmission rate is up to 18Gbps.
- Coax digital audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rate(HBR) audio pass through
| Video | |
| Input | HDMI × 1 |
| Input HDCP Version | Up to HDCP 2.2 |
| Output | HDMI × 1 |
| Output HDCP Version | Up to HDCP 2.2 |
| Audio | |
| Output | Stereo balanced audio L/R × 1 |
| Analog audio L+R × 1 | |
| COAX × 1 | |
| Stereo analog audio format | PCM |
| Coax digital audio format | LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH |
| General | |
| Max data rate | 18Gbit/s |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Operation Temperature | -10~ 55ºC |
| Relative humidity | 10% ~ 90% |
