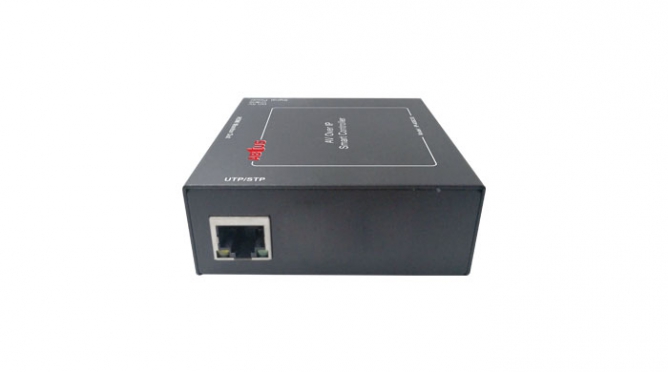

AVOIP Smart Controller



The ABtUS IP-ASSC/G Smart Controller for AV over IP series provides central management and real time monitoring over the IP based IP-AS11T/G & IP-AS11R/G transmitters and receivers. With high expandability, a single IP-ASSC/G can serve up to 1024 transmitters and unlimited receivers at once. An intuitive web-based GUI enables users to drag and drop any source to any display, build video wall, create custom OSD, and schedule the operation for video and power. Plus, IP-ASSC/G provides continuous system monitoring, self-recovery along with real-time event notifications and alerts. Through cooperate network connection, users can remotely access and even activate the system from mobile devices.

● Control center of the IP-based Transmitter and Receiver (IP-AS11T/G & IP-AS11R/G)
● Monitors all devices in one central system
● Cost effective solution
● Intuitive and powerful user interface
● Includes Web interface
● Easy installation with auto-detection of transmitter and receiver units in the network.
● Drag-and-drop easy matrix switching
● Easy to create multiple video walls
● Schedule time for audio/video mapping, cycle-play and mute/resume
● Allows to create custom OSD
● Watch-dog with self-recovery
● Supports video wall function

Input  1x RJ-45
Output  1x HDMI
HDMI connector  Type A [19-pin female]
RJ-45 connector  WE/SS 8P8C
Fixedness  Rack-mount with ears
Power supply  5V DC
Power consumption  3.5 Watts [max]
Operation temperature  0~40°C [32~104°F]
Storage temperature  -20~60°C [-4~140°F]
Relative humidity  20~90% RH [no condensation]
Housing  Metal enclosure
Gross Dimensions  198 x 137 x 74mm
Gross Weight  493g
