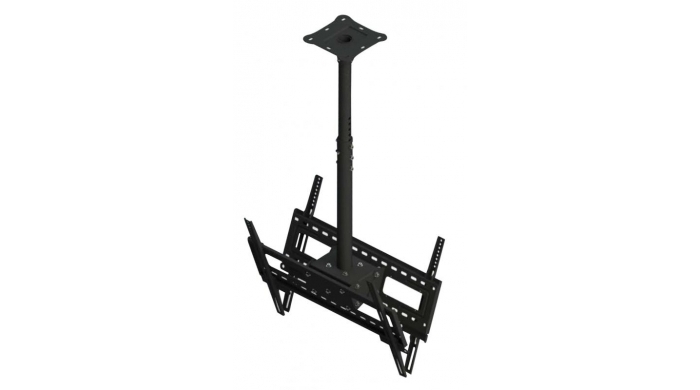

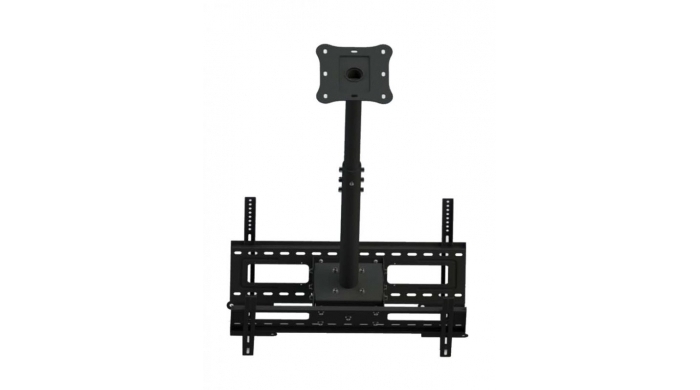

LED/LCD Display Ceiling Mount (Double)

AV417-V1

product

AV417-V1 is a durable ceiling mount for mounting two TVs back to back widely used in shopping malls with adjustable extension poles for variable height installation.

Fast and easy installation
360 degrees rotation
Tilt max 20 degrees on both sides
Includes mounting hardware kit
Lock bars for security
Extendable pole construction
Cable management

PLASMA SIZE : Suitable for 37” to 50”
GROSS DIMENSION : 770 x 270 x 270 (mm)
GROSS WEIGHT : 521.5kg (47.3 lbs)
LENGTH OF HOOK : 559mm (22”)
TILT ANGLE : +20 degree / -5 degree
LOAD CAPACITY : 100kg (220 lbs)
COLOR OPTION : Black


Expand All | Collapse All

Datasheets

Back to top

Manual Guide

Back to top

High Resolution Image

Back to top

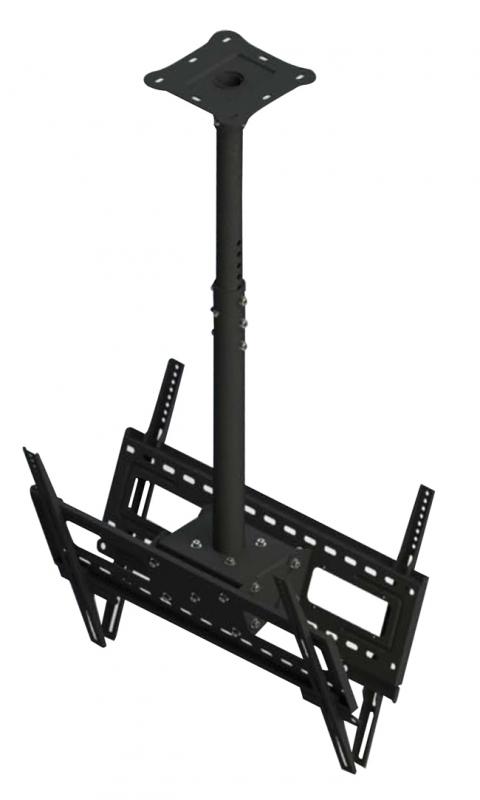

image High Resolution Image 1

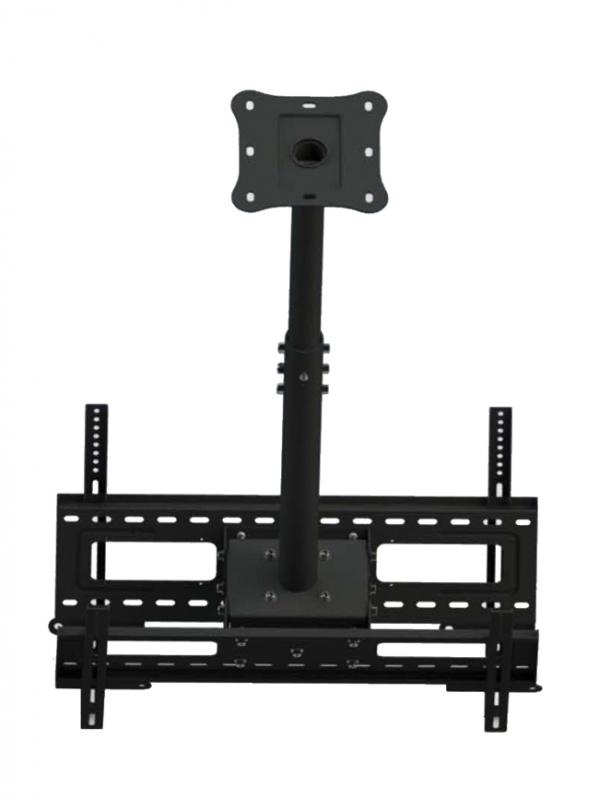

image High Resolution Image 2

AV417-V1
LED/LCD Display Ceiling Mount (Double)

AV417-V1 is a durable ceiling mount for mounting two TVs back to back widely used in shopping malls with adjustable extension poles for variable height installation.
Features

Fast and easy installation
360 degrees rotation
Tilt max 20 degrees on both sides
Includes mounting hardware kit
Lock bars for security
Extendable pole construction
Cable management
Technical Spec
PLASMA SIZE : Suitable for 37” to 50”
GROSS DIMENSION : 770 x 270 x 270 (mm)
GROSS WEIGHT : 521.5kg (47.3 lbs)
LENGTH OF HOOK : 559mm (22”)
TILT ANGLE : +20 degree / -5 degree
LOAD CAPACITY : 100kg (220 lbs)
COLOR OPTION : Black

Download

UM2_AV417-V1.pdf


  • High Resolution Image 1

  • High Resolution Image 2
Technical Specification
GROSS WEIGHT

521.5kg (47.3 lbs)
LOAD CAPACITY

100kg (220 lbs)
COLOR OPTION

Black
TILTING ANGLE

 +20 degree / -5 degree
PLASMA SIZE

Suitable for 37” to 50”
GROSS DIMENSION

770 x 270 x 270 (mm)
LENGTH OF HOOK

559mm (22”)

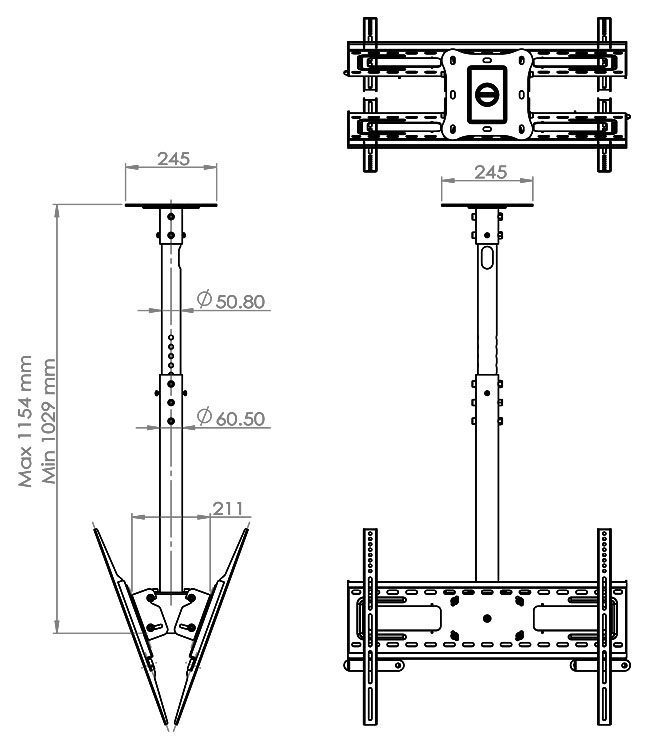

Diagram
