AVS-308V6P
AVS-308V6P

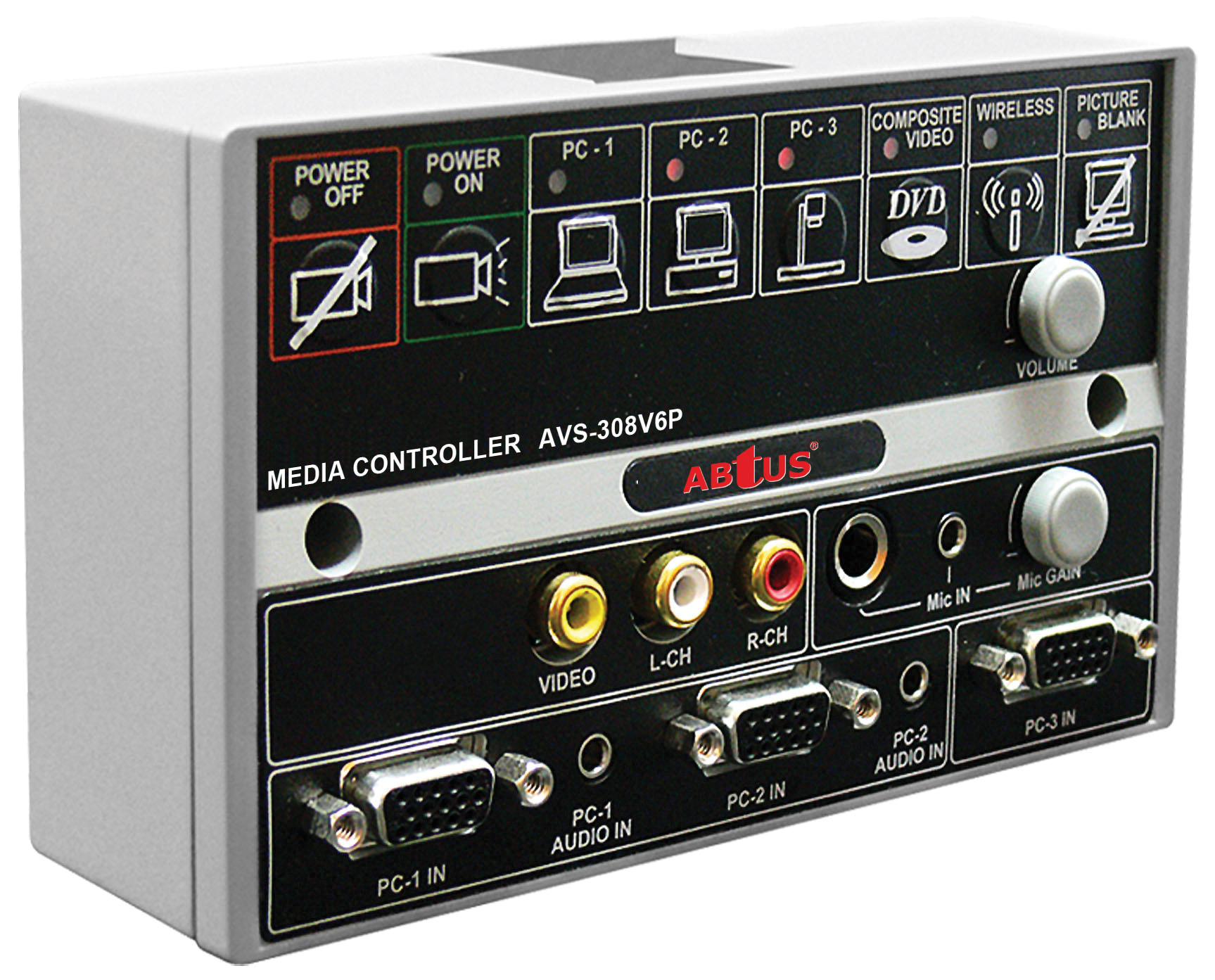

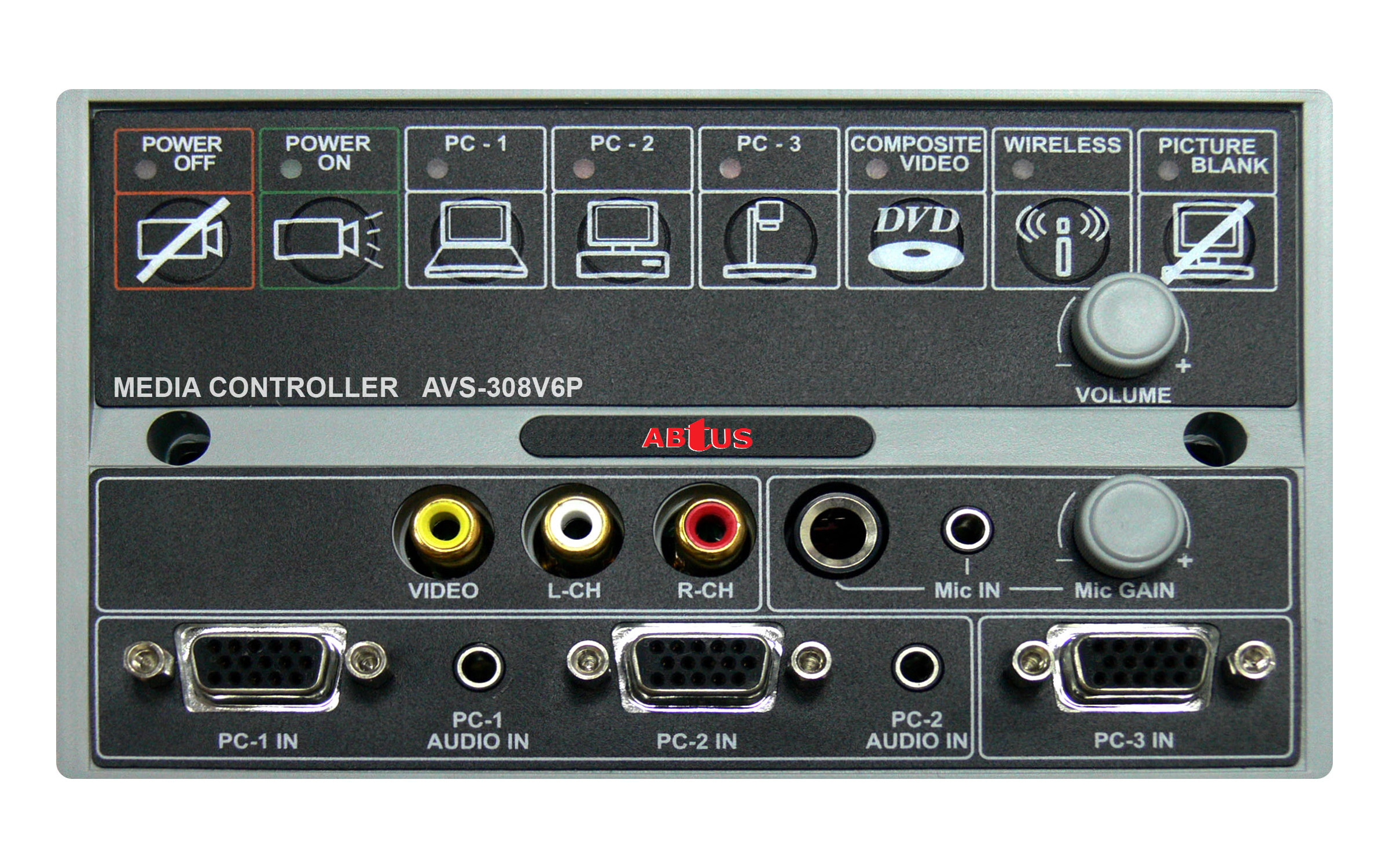

The ABtUS AVS-308V6P Media Control Panel is one of the most user and installer friendly User Programmable Controller that is specifically designed for an easy and central control of any AV projection system. It removes the need for over complicated and multiple remote control handsets.
Typical Applications
Any professional presentation system requiring multiple AV Inputs of all different type of Video standard and a standard projector controller.
- Schools (Media Classroom)
- Churches
- Corporate Application (Meeting Room)
- "User Programmable" with Windows base Application Software
- Simple to use with one-to-one function controlled button
- Works well with any monitors and projectors
- Supports 3 VGA input with resolutions from VGA to SXGA
- Easy Installation with standard 2.54mm connector and cabling
- Fully self contained/integrated Projector Controller with AV Switcher
| INPUT | : | 3 × PC Input (*D-Sub 15pin) | |
| 2 × PC-Audio (*3.5mm) | |||
| 1 × C-Video (*RCA) | |||
| 1 × Stereo Audio (*RCA) | |||
| 1 × Microphone (*3.5mm) | |||
| 1 × Microphone (*6.3mm) | |||
| OUTPUT | : | 2 × VGA output (*300 MHz) |
|
| 1 × C-Video (*standard 2.54mm connector) | |||
| 1 × Main Stereo Audio | |||
| VGA BANDWIDTH | : | 3-in 2-out VGA Distribution Amplifier (900MHz R+G+B) |
|
| MAX RESOLUTION | : | 1280 × 1024 | |
| ALL ABLE LENGTH | : | Up to 28 meter | |
| CONFIGURABLE COM PORT | : | RS-232 (8 Data Bit and 1 Stop Bit) | |
| PARITY BIT | : | 9600 to 38400 | |
| PARITY BIT | : | Non, Even or Odd | |
| DELAY TIME | : | Projector "ON/OFF" delay time (*in sec) 1 to 99 | |
| CONTROL BUTTON | : | Number of user defined "Control Button" × 8 Available protocol for each "Control Button" × 1 |
|
| LED | : | With LED & Buzzer for confirmation | |
| VIDEO SELECTION | : | All Video/VGA Input Switching | Digital |
| AUDIO SELECTION | : | Audio Input Switching | Digital |
| VOLUME | : | Main Volume Control | Analog |
| MIC GAIN | : | Microphone Input Gain Control | Analog |
| POWER ADAPTER | : | 12V-DC, 350mA | |
AVS308_setup.zip
