Programmable Integrated Projector Controller Switcher

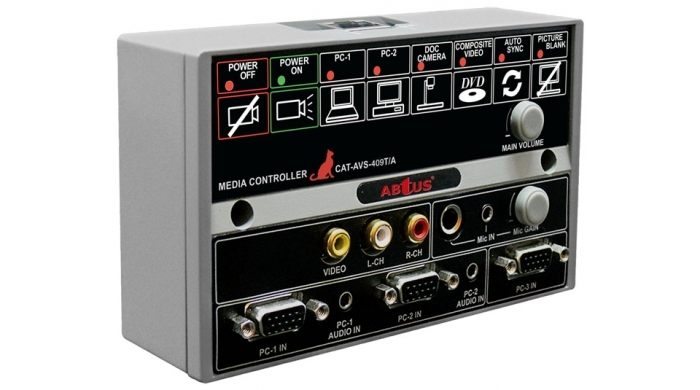

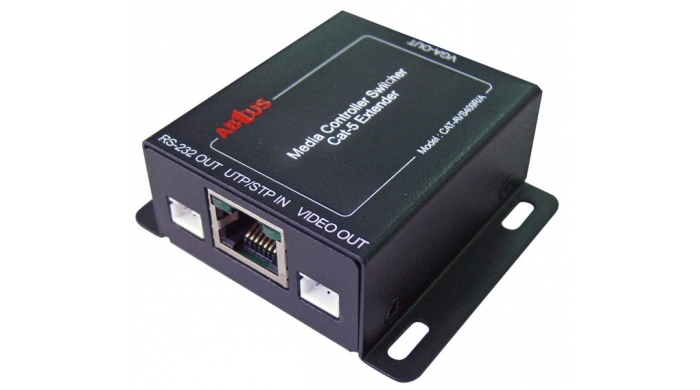

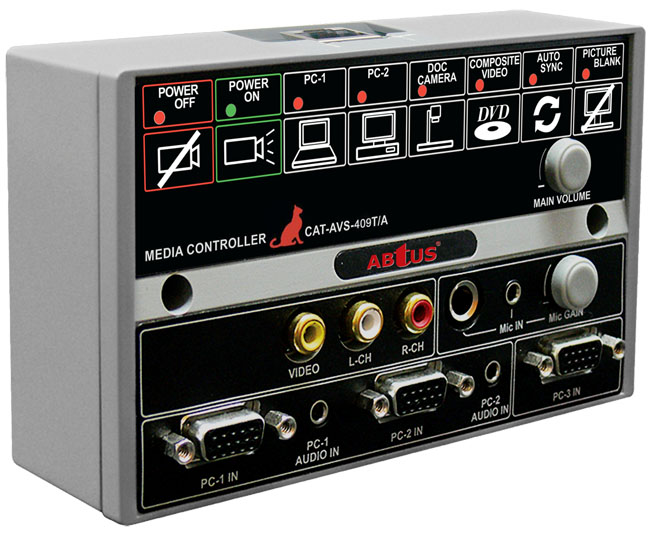

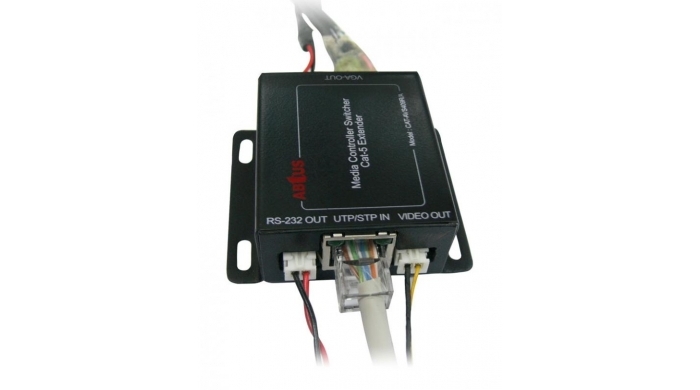

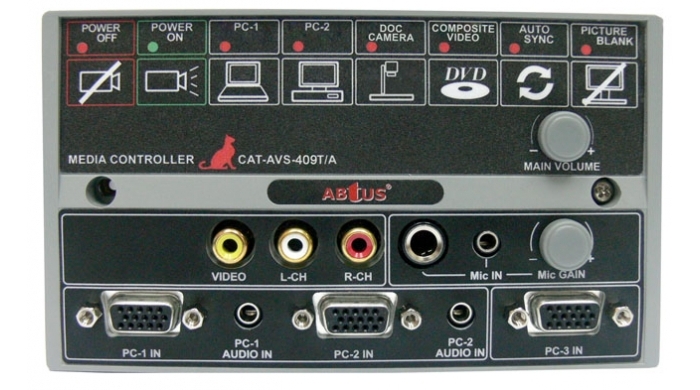

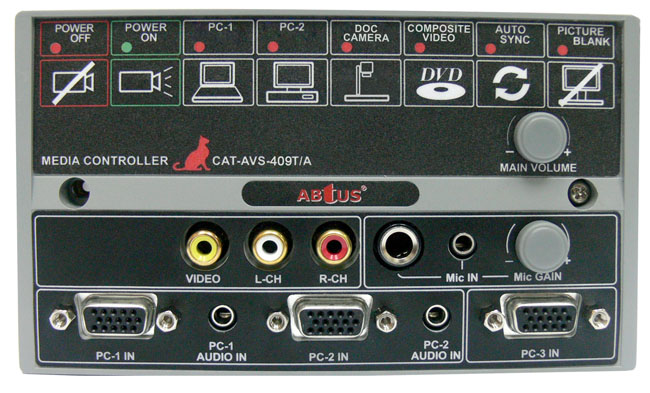

CAT-AVS-409T/A & CAT-AVS-409R/A
The ABtUS CAT-AVS-409T/A (Tx) and CAT-AVS-40R/A (Rx) Media Control Panel is one of the most user friendly and installer friendly Programmable controller specifi cally designed for a easy interconnection to projector with a single Cat-5e cable. It removes the need for over-complicated and multiple remote control handsets. With it single Cat-5 interconnection, disconnection and reconnection can never be easier and faster. Ideal for Controller mounted on mobile rostrum.
- “User Programmable” with Window base Application Software
- Simple to used with one to one function controlled button
- Fully self contained / integrated Projector Controller with AV and VGA switching
- Single Cat-5 interconnection for fast and easy disconnection and reconnection
- “POE” Power Over Ethernet, NO additional power adaptor is needed over at Receiver end
| CAT-AVS-409T/A | CAT-AVS-409R/A | ||
| INPUT | : | 3 x PC Input (*D-Sub 15pin) 2 x PC-Audio (*3.5mm) 1 x C-Video (*RCA) 1 x Stereo Audio (*RCA) 1 x Microphone (*3.5mm) 1 x Microphone (*6.3mm) |
1 x RJ45 (*Cat-5 from Transmitter unit) |
| OUTPUT | : | 1 x VGA output (*standard 2.54mm connector to Local Monitor) 1 x Stereo Audio (*Standard 2.54mm to 3.5mm stereo jack) 1 x RJ45 (*Cat-5 to Receiver unit) |
1 x PC Input (*D-Sub 15pin) 1 x C-Video (*RCA) 1 x RS-232 (*3.8mm terminal block) |
| VGA BANDWIDTH | : | 3-in 2-out VGA Switcher Distribution Amplifier (900MHz R+G+B) |
|
| MAX RESOLUTION | : | 1280 x 1024 | |
| CAT-5 CABLE LENGTH | : | Up to 20 meter (*Base on standard ABtUS Cat-5e cable) *Standard/length may varies base on the type Cat-5 cable used |
|
| CONFIGURABLE COM PORT | : | 1 x RS-232 (8 Data Bit and 1 Stop Bit) Baud Rate (1200 to 115200) Parity Bit (Non, Even or Odd) Programmable projector protocol |
|
| DELAY TIME | : | Projector "ON/OFF" delay time (*in sec) 1 to 99 | |
| CONTROL BUTTON | : | Number of user defined "Control Button" x 8 Available protocol for each "Control Button" x 2 |
|
| LED | : | With LED for indication and confirmation | |
| VIDEO SELECTION | : | All Video/VGA Input Switching | Digital |
| AUDIO SELECTION | : | Audio Input Switching | Digital |
| VOLUME | : | Main Volume Control | Analog |
| MIC GAIN | : | Microphone Input Gain Control | Analog |
| POWER ADAPTOR | : | 12V-DC, 500mA | |
| HOUSING | : | ABS Enclose | |
| WEIGHT | : | 149 x 88 x 48 mm (Standard UK two gang casing) |
|
| WEIGHT | : | 350g | 90 g |
