1:4 HDMI 2.0 Distribution Amplifier
AVA-HDMI14/H

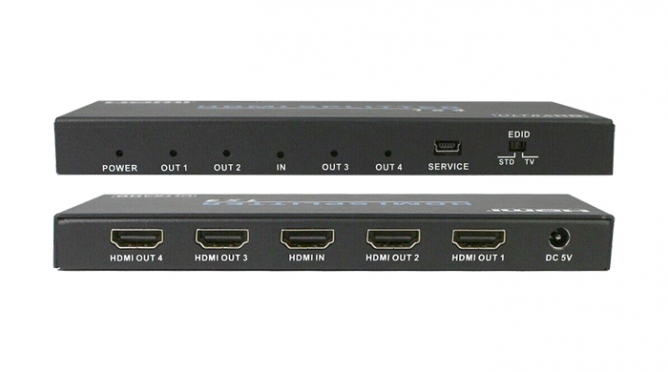

AVA-HDMI14/H distribution amplifier is an advanced solution for splitting HDMI content to 4 HDMI outputs synchronously.
It supports resolution of up to 4K@60Hz (4:4:4) and comes with EDID dip switch to switch between its built in EDID or display EDID.
● Supports HDMI 2.0b, HDCP2.2 compliant
● Supports resolution of up to 4K@60Hz 4:4:4
● Supports 3D frame sequential video format up to 4K@30Hz
● Support LPCM 7.1 audio, Dolby® TrueHD and DTS-HD® Master Audio™
● Built in EDID settings
| Video | |
| Input: | HDMI x 1 |
| Output: | HDMI x 4 |
| Video Resolution: | Up to 4K@60Hz 4:4:4 |
| HDMI Audio Format: | LPCM 7.1 audio, Dolby® TrueHD and DTS-HD® Master Audio™ |
| HDMI Version: | Up to 2.0b |
| HDCP Version: | Up to 2.2 |
| Power Supply: | 5V DC 1A |
| Power Consumption: | 2W |
| Operation Temperature: | 0 to 40°C (32 to 104°F) |
| Storage Temperature: | -20 to 60°C (-4 to 140°F) |
| Relative Humidity: | 20 to 90%, Non-condensing |
| Dimension (W*H*D): | 63mm x 16mm x 163mm |
| Net Weight: | 260g |
ds_AVA-HDMI14(H_2023-07Jul-28.pdf
