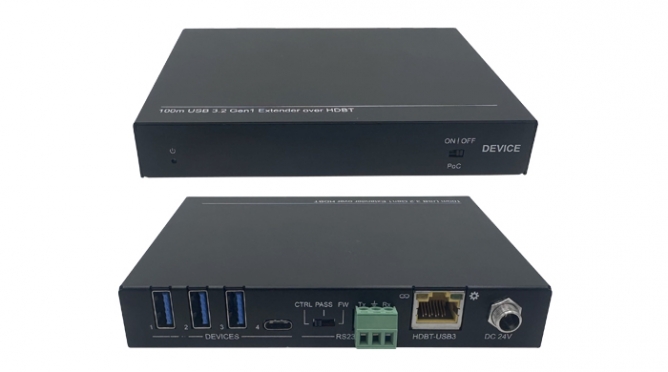

2x1 USB 3.2 Switcher with HDBT Receiver
HDBT-SWUSB3R-100M
The 100M USB 3.2 Gen 1 extender is designed to transmit USB signal up to 100m distance. HDBT-SWUSB3R-100M is the device port of the extender, it contains four USB ports. Applications include extending USB 3 conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. It is also ideal for use with all USB
peripherals in addition to USB 3.2 Gen 1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, audio devices, and other USB 3.2 Gen1 devices.
● USB3.2 Gen1 data transfer rate up to 5Gbps;
● Support extend USB signal up to 100m;
● Support RS232 pass-through/control/upgrade;
● Support USB device power management;
● Bi-directional 24V PoC power supply.
| Devices | 3 x USB [Type A] |
| 1 x USB [Type C] | |
| Devices Power | Devices share 3A current limit; |
| Single port power supply maximum limit 1.7A | |
| USB Version | USB 3.2 Gen1 |
| Control | 1 x RS232 (3 Pin 3.5mm Terminal Block) |
| Transmission distance | Up to 100m with CAT6A cable |
| PoC standard | Bi-directional 24V PoC |
| Data Rate | 5Gbps |
| Operation Temperature | -10°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humility | 10% ~ 90% |
| External Power Supply | DC 24V 1.5A (Does not comes with Power Adaptor) |
| Power Consumption | 19W (Max) |
| Dimension (W*H*D) | 133.0mm x 21.5mm x 105.0mm |
| Net Weight | 340g |
