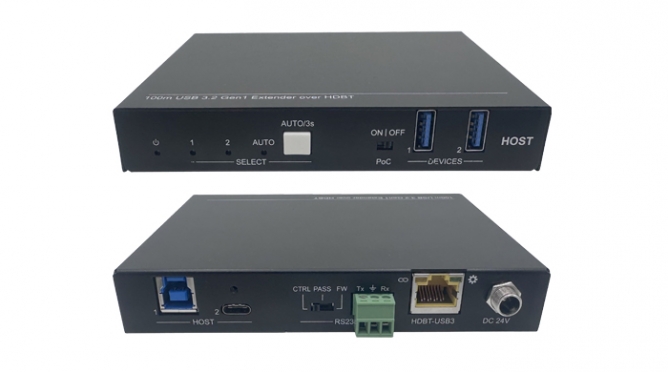

2x1 USB 3.2 Switcher with HDBT Transmitter
HDBT-SWUSB3T-100M

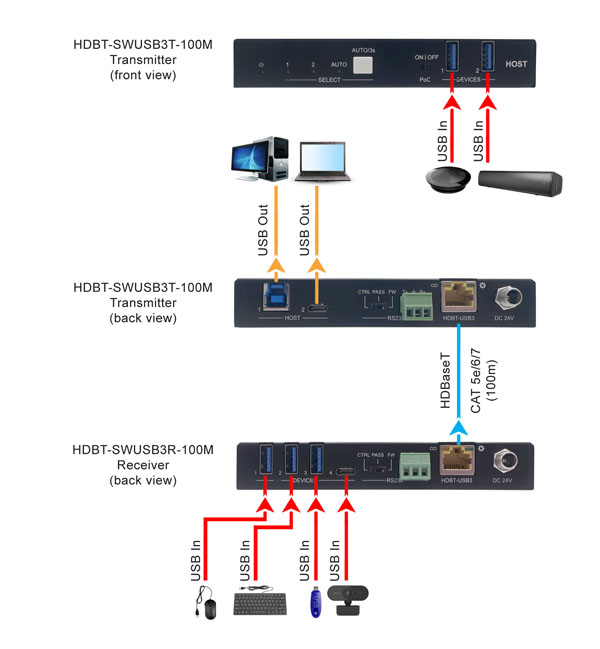

The 100M USB 3.2 Gen 1 extender is designed to transmit USB signal up to 100m distance. HDBT-SWUSB3T-100M is the host port of the extender, it contains one Type-B and one Type-C for PC or laptop connect. It also has two local USB-A port with 5V500mA power supply for speakerphone and headset. The extender also supports bi-directional 24V PoC power.
● 2x1 USB 3.2 Gen1 switcher;
● Support extend USB signal up to 100m;
● Support RS232 passthrough/control/upgrade;
● Auto/manual switching mode;
● Bi-directional 24V PoC power supply
| Host | 1 x USB [Type B] |
| 1 x USB [Type C] | |
| Devices | 2 x USB [Type A] |
| Devices Power | 5V 500mA total |
| USB Version | USB 3.2 Gen1 |
| Control | 1 x Button |
| 1 x RS232 (3 Pin 3.5mm Terminal Block) | |
| Transmission distance | Up to 100m with CAT6A cable |
| PoC standard | Bi-directional 24V PoC |
| Data Rate | 5Gbps |
| Operation Temperature | -10°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humility | 10% ~ 90% |
| External Power Supply | DC 24V 1.5A (Comes with Power Adaptor) |
| Power Consumption | 6.4W (Max) |
| Dimension (W*H*D) | 133.0mm x 21.5mm x 105.0mm |
