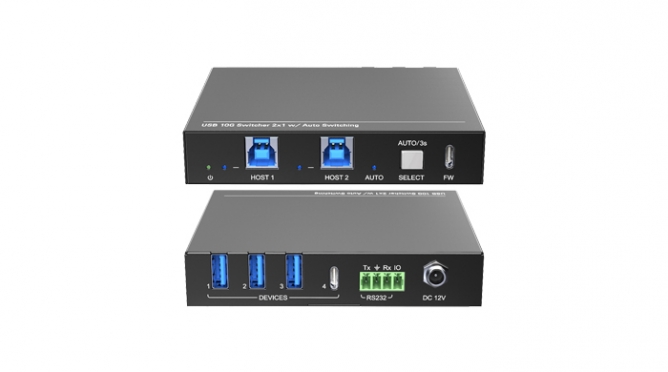

ABtUS 2x1 USB 3.2 Gen 2 10Gbps Switcher
SW-USB21

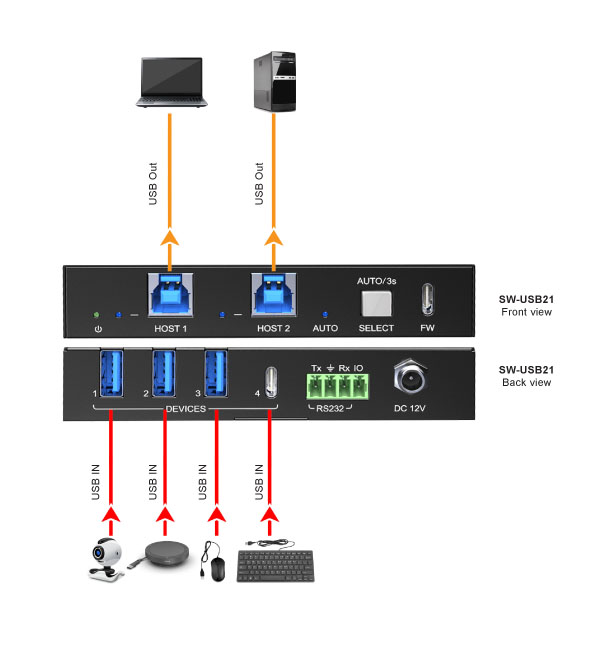

The ABtUS 10G hub, which is designed to switch between the host and connect KVM devices to the host. The hub can be controlled by button in front panel, RS232 and GPIO.
● 2x1 USB 3.2 switcher, 10G;
● Supports auto switching;
● Sufficient power(2A) for latest camera;
● Support button, RS232 and GPIO control.
| Host | 2 x USB-B |
| Bandwidth | Up to 10Gbps |
| Device | 3 x USB-A |
| 1 x USB-C | |
| Current: | Three USB-A and one USB-C share 2A total current |
| Control Ports: | 1 x Button, 1 x White non-luminous button |
| 1 x RS232, 1 x 3-pin terminal block | |
| 1 x GPIO, 1 x 1-pin terminal block | |
| Power Supply: | DC 12V 2A, 1 x Locking block |
| USB Version: | USB3.2 gen2 |
| Maximum Power Consumption: | 10.65W |
| Operation Temperature: | -5~ +55°C |
| Storage Temperature: | -25 ~ +70°C |
| Relative Humidity : | 10% ~ 90% |
| Dimension(W*D*H): | 112mm x 90mm x 21.7mm |
| Weight: | 245g |
ds SW-USB21_22dec2023.pdf
