USB-C To HDMI HDBaseT Extender 70M With USB2.0
HDBT-UUB11H-70M
The ABtUS HDBT-UUB11H-70M is an USB-C To HDMI HDBaseT Extender which allows high definition video to be transmitted over distances of up to 40m at 4K@60Hz and 70m at 4K@30Hz via CAT6A cable.

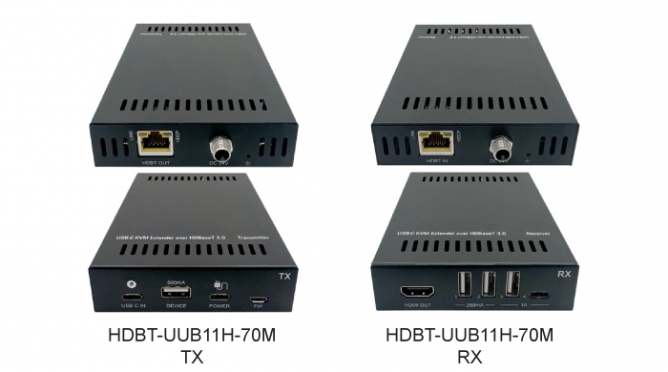

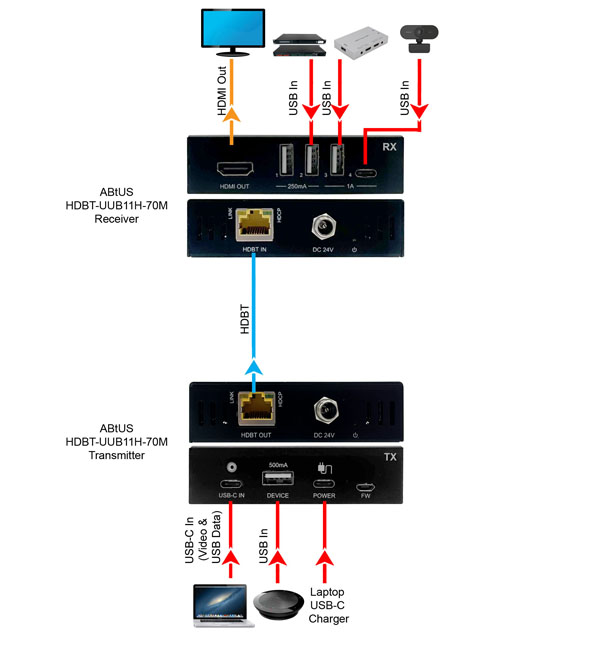

The transmitter features one USB-C input and one HDBaseT 3.0 output. For the USB-C in, it provides an AV ideal interface for connecting to Macbook or other device with SlimPort output and there’s also a additional USB-C power meant for connecting external power adaptor to charge USB C device connected to USB-C in.
The receiver features one HDMI output, one HDBaseT 3.0 input and 4 USB 2.0 ports for connecting with KVM device such as camera, keyboard and mouse.
- USB-C input supports 4K@60Hz 4:4:4.
- Supports to transmit up to 40m at 4K@60Hz and 70m at 4K@30Hz.
- Supports bi-direction 24V PoC power supply.
- TX supports USB-C charging port to charge input device
- 5 USB 2.0 ports for connecting with KVM device.
- Micro-USB for firmware upgrade.
| TX | RX | |
| Input: | 2 x USB-C IN [Type C] | 1 x HDBaseT IN [RJ45] |
| Output: | 1 x HDBaseT Out [RJ45] | 1 x HDMI Out [Type A female HDMI] |
| Control: | 1 x USB 2.0 [Type A 5V500mA] | 2 x USB 2.0 [Type A 5V250mA] |
| 1 x USB 2.0 [Type A 5V1A] | ||
| 1 x USB 2.0 [Type C 5V1A | ||
| Video Resolution: | Up to 4K@60Hz 4:4:4 | Up to 4K@60Hz 4:4:4 |

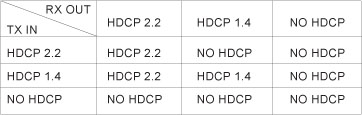

| HDCP Version: | Input: HDCP 2.2, HDCP 1.4 compliant | |
| Output: | ||
 |
||
| PoC: | Supported bi-directional 24V PoC | |
| HDMI V2.0 Cable Length: | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, 1080P ≤ 15m | |
| Transmission Distance: | 4K@60 4:4:4≤ 40m; 4K@30 4:4:4 ≤ 70m | |
| Operation Temperature: | -5 to +55 °C (+23° to +131°F) | |
| Storage Temperature: | -25 to +70°C(-13° to +158°F) | |
| Relative Humidity: | 10% to 90%, Non-condensing | |
| Power Supply: | 24V DC 1.25A | |
| Power Consumption: | 30W | |
| Dimension(W*D*H): | 90mm x 140mm x 24mm | 90mm x 120mm x 24mm |
| Weight: | 285g | 250g |
