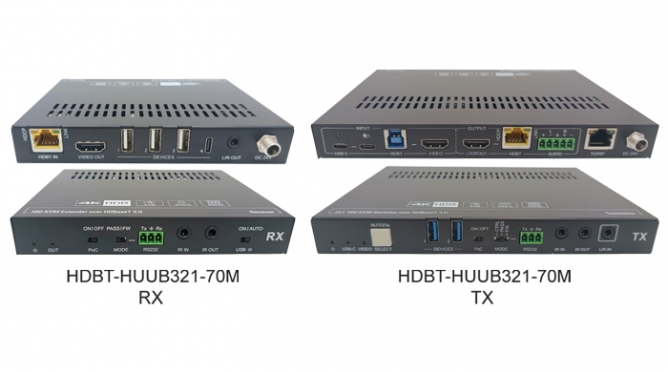

2x1 18G KVM Extender over HDBaseT
HDBT-HUUB321-70M

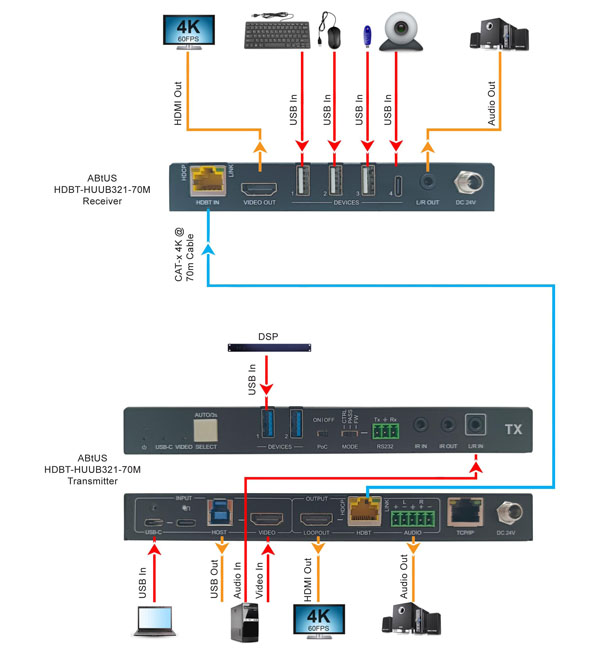

The ABtUS 2x1 18G KVM Extender over HDBaseT includes a transmitter (TX) and a receiver (RX), enabling high-quality video transmission over a single CAT6A cable. It supports distances of up to 40m at 4K@60Hz and 70m at 4K@30Hz. Additional features include audio pass-through, two-way IR, USB extension, and RS232 pass-through. The 24V PoC (Power over Cable) functionality allows the TX and RX to power each other, requiring only one power adapter for the entire system—either the TX or RX needs to be powered.
● 18Gbps high bandwidth, HDMI V2.0.
● HDMI and USB-C video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
● Supports to transmit up to 40m at 4K@60Hz or 70m at 4K@30Hz, with HDCP 2.2.
● Controlled by button on the front panel, GUI (via TCP/IP) and RS232.
● Two-way IR and RS232 pass-through.
● Supports audio separation for PCM 2.0, and audio pass-through.
● Supports two-way 24V PoC.
● Provides HDMI loop out.
| Transmitter | Receiver | |
| Video | ||
| Input | 1 x HDMI IN | 1 x HDBT IN |
| 1 x USB-C | ||
| Input Connector | 1 x Type-A female HDMI | 1 x RJ45 |
| 1 x USB Type-C | ||
| Input Resolution | Support up to 4K@60Hz 4:4:4 | |
| Output | 1 x HDBT OUT, 1 x LOOPOUT | 1 x VIDEO OUT |
| Output Connector | 1 x RJ45, 1 x Type-A female HDMI | 1 x Type-A female HDMI |
| Output Resolution | Up to 4K@60Hz 4:4:4 | |
| Audio | ||
| Input | 1 x L/R IN | - |
| Input Connector | 1 x 3.5mm jack | - |
| Output | 1 x Analog audio output | 1 x L/R OUT |
| Output Connector | 1 x 5-Pin terminal block | 1 x 3.5mm jack |
| Audio Format | Supports PCM 2.0 | |
| Frequency Response | 20Hz ~ 20KHz, ±3dB | |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal | |
| consumer line level signal | ||
| THD+N | < 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFS level (or max level) | |
| SNR | > 80dB, 20Hz-20kHz bandwidth | |
| Crosstalk Isolation | -70dB, 10kHz sine at 0dBFS level (or max level before clipping) | |
| L-R Level Deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) | |
| Frequency Response Deviation | 20Hz - 20kHz, ±3dB | |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) | |
| Stereo Channel Separation | > 70dB@1KHz | |
| Control | ||
| Control Part | 2 x USB DEVICES, | 4 x USB DEVICE, |
| 1 x RS232, | 1 x RS232, | |
| 1 x IR IN, | 1 x IR IN, | |
| 1 x IR OUT, | 1 x IR OUT, | |
| 1 x MODE Switch, | 1 x MODE Switch, | |
| 1 x PoC Switch, | 1 x PoC Switch, | |
| 1 x HOST, | 1 x USB Power Switch | |
| 1 x TCP/IP, | ||
| 1 x USB-C | ||
| Control Connector | 2 x USB 3.2 Gen1 Type-A, | 3 x USB 2.0 Type-A, |
| 1 x USB 3.2 Gen1 Type-B, | 1 x USB 2.0 Type-C, | |
| 1 x 2-pin DIP Switch | 3 x 2-pin DIP Switch, | |
| 2 x 3.5mm Jacks, | 2 x 3.5mm Jacks, | |
| 1 x 3-pin Terminal Block, | 1 x 3-pin Terminal Block | |
| 1 x USB-C | ||
| Bandwidth | 18Gbps | |
| HDMI Standard | 2 | |
| HDCP Version | Input: HDCP 2.2, HDCP 1.4 compliant. Support HDCP management. | |
| Two-way PoC | Supported two-way 24V | |
| HDMI V2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@30Hz 4:4:4 ≤ 10m, 1080p ≤ 15m | |
| Transmission Standard | HDBaseT | |
| Transmission Distance | 4K@60 4:4:4 ≤ 40m; 4K@30 4:4:4 ≤ 70m, 1080p@60 4:4:4 ≤ 70m | |
| Operation Temperature | -5°C to +55°C (+23° to +131°F) | |
| Storage Temperature | -25°C to +70°C (-13°F to +158°F) | |
| Relative Humidity | 10% to 90%, non-condensing | |
| Power Supply | DC 24V/1.5A | |
| Power Consumption | 35.5W (Max) | 28W (Max) |
| Dimension (W x H x D) | 190mm x 21.7mm x 130mm | 140mm x 21.5mm x 110mm |
| Net Weight | 520g | 360g |
