HDMI Extender over CAT5e/CAT6

IP-HDX11T/P2 & IP-HDX11R/P2

product

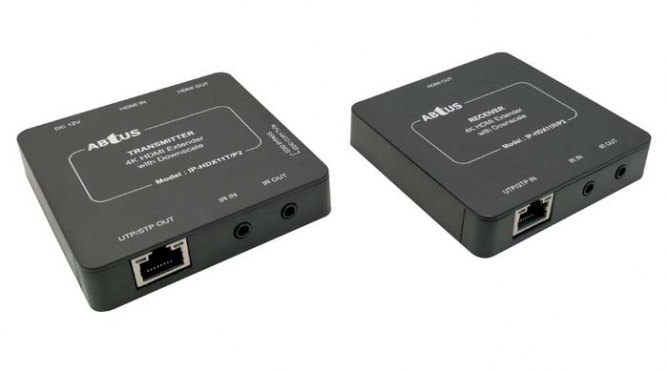

The ABtUS IP-HDX11T/P2 & IP-HDX11R/P2 is a cost-effective point-to-point extender for HDMI V1.4 and IR signals. The extender supports 4K@30Hz with 4:4:4 with data rates up to 10.2Gbps and is HDCP 2.2 compliant. The IP-HDX11T/P2 & IP-HDX11R/P2 provides HDMI transmission up to 100 meters for 4K@30Hz 4:4:4 or 1080p, over single CAT5e/6 cable. The extender supports video resolution down-scaling allowing the 4K input to be automatically downscale to 1080p output for compatibility with 1080p display.

  • Supports HDMI V1.4, up to 4K@30Hz 4:4:4, HDCP 2.2.
  • Extends 4K or 1080p HDMI signal up to 100m over a single CAT5e/6 cable.
  • HDMI loop out on transmitter.
  • Bi-directional IR pass-through.
  • Support POC.
  • Supports video resolution down-scaling, the 4K input is automatically degraded to 1080p output on receiver for compatibility with legacy 1080p display device.
  • Features visually lossless compression with no latency.
  • Smart EDID management.
  • Compact design, easy to install and simple to operate.
  IP-HDX11T/P2 (Transmitter) IP-HDX11R/P2 (Receiver)
Input: HDMI x 1 RJ45 x 1
Output: HDMI x 1
RJ45 x 1		 HDMI x 1
Control: IR IN (3.5mm mini jack)
IR OUT (3.5mm mini jack)		 IR IN (3.5mm mini jack)
IR OUT (3.5mm mini jack)
Video Resolution: Up to 4K@30Hz 4:4:4
HDMI Audio Format: Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby
Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch.
Transmission Distance: 4K/1080p ≤ 100 m (CAT6A/(F/FTP))
HDMI Version: Up to 1.4
HDCP Version: Up to 2.2. The HDCP of output follows the HDCP version of display device.
EDID Management: Supported.
Power Supply: Input: 100 to 240V AC, 50/60Hz;
Output: 12V DC 1A
Power Consumption: 4W (Max)
Operation Temperature: -5 to +55°C (+23° to +131°F)
Storage Temperature: -25 to +70°C (-13° to +158°F)
Relative Humidity: 10% to 90%, Non-condensing
Dimensions (W*H*D): 80mm x 16.8mm x 80mm
Net Weight: 65 g 60 g


IP-HDX11T/P2 & IP-HDX11R/P2
HDMI Extender over CAT5e/CAT6

The ABtUS IP-HDX11T/P2 & IP-HDX11R/P2 is a cost-effective point-to-point extender for HDMI V1.4 and IR signals. The extender supports 4K@30Hz with 4:4:4 with data rates up to 10.2Gbps and is HDCP 2.2 compliant. The IP-HDX11T/P2 & IP-HDX11R/P2 provides HDMI transmission up to 100 meters for 4K@30Hz 4:4:4 or 1080p, over single CAT5e/6 cable. The extender supports video resolution down-scaling allowing the 4K input to be automatically downscale to 1080p output for compatibility with 1080p display.
Features
  • Supports HDMI V1.4, up to 4K@30Hz 4:4:4, HDCP 2.2.
  • Extends 4K or 1080p HDMI signal up to 100m over a single CAT5e/6 cable.
  • HDMI loop out on transmitter.
  • Bi-directional IR pass-through.
  • Support POC.
  • Supports video resolution down-scaling, the 4K input is automatically degraded to 1080p output on receiver for compatibility with legacy 1080p display device.
  • Features visually lossless compression with no latency.
  • Smart EDID management.
  • Compact design, easy to install and simple to operate.
Technical Spec
  IP-HDX11T/P2 (Transmitter) IP-HDX11R/P2 (Receiver)
Input: HDMI x 1 RJ45 x 1
Output: HDMI x 1
RJ45 x 1		 HDMI x 1
Control: IR IN (3.5mm mini jack)
IR OUT (3.5mm mini jack)		 IR IN (3.5mm mini jack)
IR OUT (3.5mm mini jack)
Video Resolution: Up to 4K@30Hz 4:4:4
HDMI Audio Format: Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby
Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch.
Transmission Distance: 4K/1080p ≤ 100 m (CAT6A/(F/FTP))
HDMI Version: Up to 1.4
HDCP Version: Up to 2.2. The HDCP of output follows the HDCP version of display device.
EDID Management: Supported.
Power Supply: Input: 100 to 240V AC, 50/60Hz;
Output: 12V DC 1A
Power Consumption: 4W (Max)
Operation Temperature: -5 to +55°C (+23° to +131°F)
Storage Temperature: -25 to +70°C (-13° to +158°F)
Relative Humidity: 10% to 90%, Non-condensing
Dimensions (W*H*D): 80mm x 16.8mm x 80mm
Net Weight: 65 g 60 g
