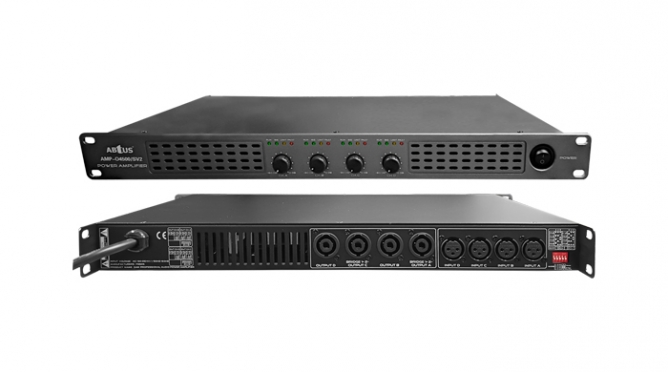

Four Channel Power Amplifier (4 x 500W)
AMP-O4500/SV2
Four Channel Power Amplifier (4 x 500W)
- Class-D power amplifier
- Power output 4 x 500W @ 8Ohm
- 19” rack mount with 1U height
- Support Stereo, Bridge & Parallel mode
- Separate channel indicators for power, signal, clipping and fault status
- High-efficiency ventilation fans to avoid heat accumulation
| Power (AES) @ 8Ω: |
4 x 500W (RMS: 350W, Peak: 700W) |
| Power (AES) @ 4Ω: |
4 x 800W (RMS: 565W, Peak: 1130W) |
| Bridge Mode (AES) @ 8Ω: |
2 x 1600W (RMS: 1130W, Peak: 2260W) |
| Inputs: |
4 x XLR (Balanced) |
| Output: |
4 x 4-pole Speakon |
| Operating mode: |
Stereo/Bridge/Parallel |
| Frequency Response: |
20Hz-20kHz, +0/-1dB |
| S/N Ratio: |
110dB |
| Total Harmonic Distortion (THD): |
<0.1%, 20Hz-20kHz |
| Input Gain: |
23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB, 44dB |
| Input Impedance: |
20k ohms (balanced), 10k ohms (unbalanced) |
| Front Panel: |
- Power Switch |
| - Channel gain control knob |
| - LED Displays, showing power, signal, clipping and fault status |
| Power: |
90 - 264VAC , 50Hz - 60Hz |
| Dimension: |
483mm x 274mm x 44mm (W x D x H) |
| Weight: |
4.55Kg |
AMP-O4500/SV2
Four Channel Power Amplifier (4 x 500W)
|
 |
Four Channel Power Amplifier (4 x 500W)
|
|
Features
|
- Class-D power amplifier
- Power output 4 x 500W @ 8Ohm
- 19” rack mount with 1U height
- Support Stereo, Bridge & Parallel mode
- Separate channel indicators for power, signal, clipping and fault status
- High-efficiency ventilation fans to avoid heat accumulation
|
|
Technical Spec
|
| Power (AES) @ 8Ω: |
4 x 500W (RMS: 350W, Peak: 700W) |
| Power (AES) @ 4Ω: |
4 x 800W (RMS: 565W, Peak: 1130W) |
| Bridge Mode (AES) @ 8Ω: |
2 x 1600W (RMS: 1130W, Peak: 2260W) |
| Inputs: |
4 x XLR (Balanced) |
| Output: |
4 x 4-pole Speakon |
| Operating mode: |
Stereo/Bridge/Parallel |
| Frequency Response: |
20Hz-20kHz, +0/-1dB |
| S/N Ratio: |
110dB |
| Total Harmonic Distortion (THD): |
<0.1%, 20Hz-20kHz |
| Input Gain: |
23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB, 44dB |
| Input Impedance: |
20k ohms (balanced), 10k ohms (unbalanced) |
| Front Panel: |
- Power Switch |
| - Channel gain control knob |
| - LED Displays, showing power, signal, clipping and fault status |
| Power: |
90 - 264VAC , 50Hz - 60Hz |
| Dimension: |
483mm x 274mm x 44mm (W x D x H) |
| Weight: |
4.55Kg |
|
|
