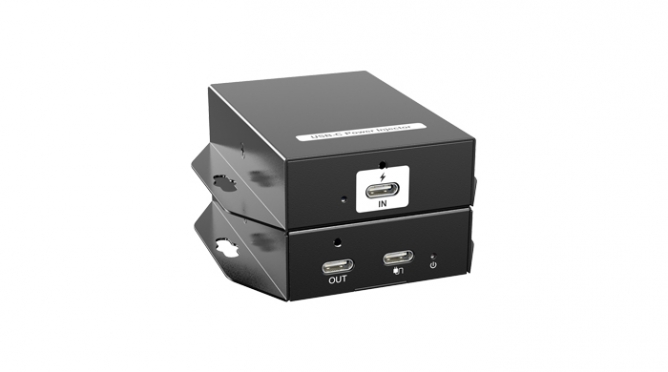

100W USB-C Power Injector
PIN-UC-100W
The PIN-UC-100W is 100W USB-C Power Injector.
● PD 3.0 w/ 100W injection.
Input
1 x USB-C
Output
1 x USB-C
Video
Input: Up to 4K@60Hz 4:4:4
Output: Up to 4K@60Hz 4:4:4
USB
Data Rate: 10 Gbps
Device Power: 5V3A
PD Standard
PD 3.0
Power Consumption
1W (Exclude USB device load)
Operation Temperature
-5 ~ +55 °C
Storage Temperature
-25 ~ +70 °C
Relative Humidity
10% ~ 90%
Dimension
54(W) x 20(H) x 80(D) mm
Net Weight
130g
PIN-UC-100W
100W USB-C Power Injector
The PIN-UC-100W is 100W USB-C Power Injector.
Features
● PD 3.0 w/ 100W injection.
Technical Spec
Input
1 x USB-C
Output
1 x USB-C
Video
Input: Up to 4K@60Hz 4:4:4
Output: Up to 4K@60Hz 4:4:4
USB
Data Rate: 10 Gbps
Device Power: 5V3A
PD Standard
PD 3.0
Power Consumption
1W (Exclude USB device load)
Operation Temperature
-5 ~ +55 °C
Storage Temperature
-25 ~ +70 °C
Relative Humidity
10% ~ 90%
Dimension
54(W) x 20(H) x 80(D) mm
Net Weight
130g
Download
Software:
Manual Guide:
Datasheets:
RS-232 Command Codes:
RS-232 Command Codes (Docklight file):
Brochure:
Other download:
High Image:

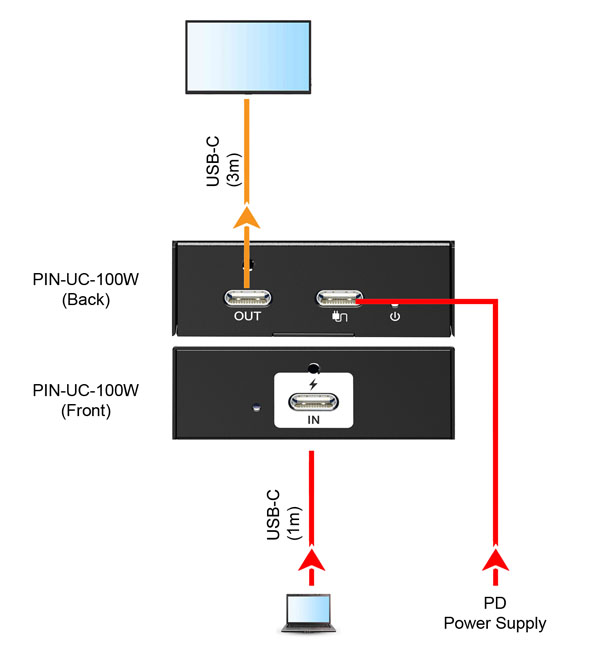

Diagram
