140W USB-C power injector with HDMI out

PIN-UC12HU-140W

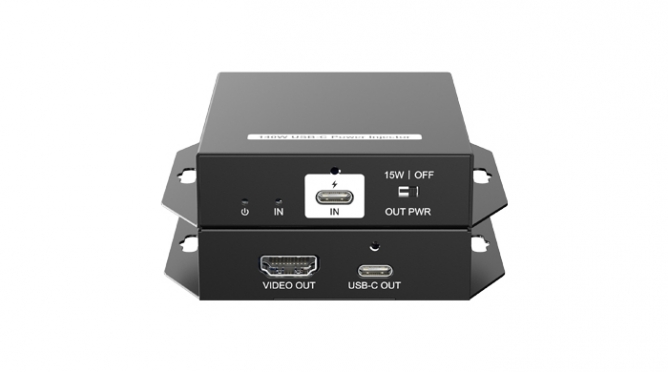

product

The PIN-UC12HU-140W 140W USB-C power injector with HDMI out

● PD 3.1 w/ 140W injection.
● DP alt mode w/ 4K@60Hz 4:4:4 video.
● Supports SST/MST output.
● USB-C w/ HDMI dual video output.
● Up to 10Gb USB3.2 Gen2 data rate.
● Switchable USB-C OUT power.
● Firmware can be upgrade via USB-C.
● USB-C input w/ locking hole

Input  1x USB-C
Output  1x USB-C, 1x HDMI
Video  Input: Up to 4K@60Hz 4:4:4
  Output: Up to 4K@60Hz 4:4:4
USB  Data Rate: 10Gbps
  Device Power: 0 / 15W
PD Standard  PD 3.1
Power Consumption 3W (Exclude USB device load)
Operation Temperature  -5 °C ~ +55 °C
Storage Temperature -25 °C ~ +70 °C
Relative Humidity 10% ~ 90%
Dimension  70(W) x 20(H) x 90(D) mm
Net Weight  165g


PIN-UC12HU-140W
140W USB-C power injector with HDMI out

The PIN-UC12HU-140W 140W USB-C power injector with HDMI out
Features

● PD 3.1 w/ 140W injection.
● DP alt mode w/ 4K@60Hz 4:4:4 video.
● Supports SST/MST output.
● USB-C w/ HDMI dual video output.
● Up to 10Gb USB3.2 Gen2 data rate.
● Switchable USB-C OUT power.
● Firmware can be upgrade via USB-C.
● USB-C input w/ locking hole
Technical Spec
Input  1x USB-C
Output  1x USB-C, 1x HDMI
Video  Input: Up to 4K@60Hz 4:4:4
  Output: Up to 4K@60Hz 4:4:4
USB  Data Rate: 10Gbps
  Device Power: 0 / 15W
PD Standard  PD 3.1
Power Consumption 3W (Exclude USB device load)
Operation Temperature  -5 °C ~ +55 °C
Storage Temperature -25 °C ~ +70 °C
Relative Humidity 10% ~ 90%
Dimension  70(W) x 20(H) x 90(D) mm
Net Weight  165g
Download

UM PIN-UC12HU-140W 2026-06June-05.pdf

DS PIN-UC12HU-140W 2026-06June-05.pdf

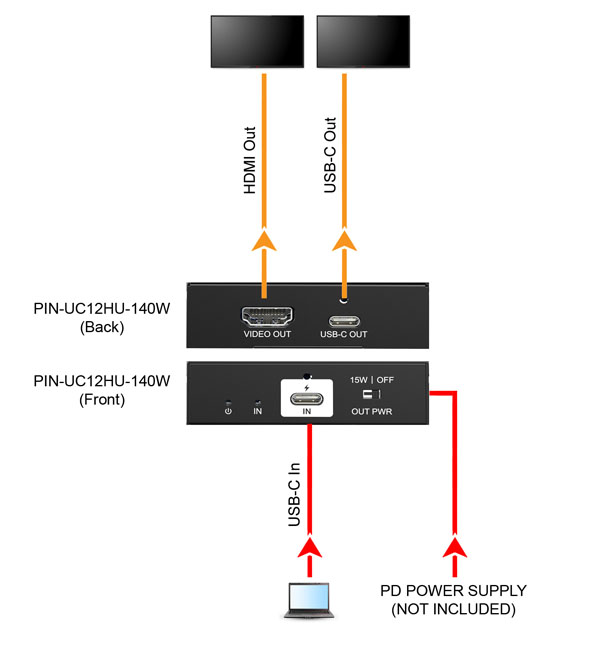

Diagram
