Wireless Touch Panel

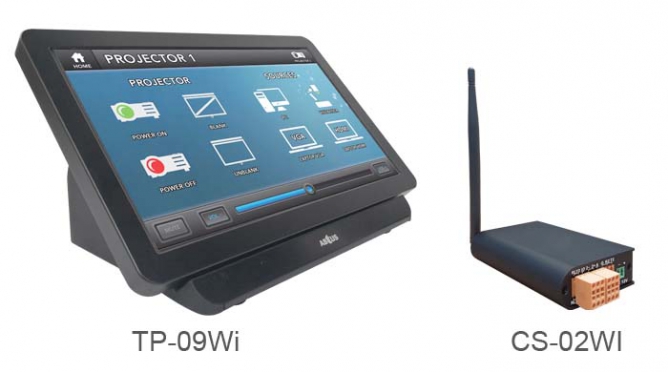

TP-09WI & CS-02WI
The ABtUS TP-09WI is a TFT 65k true colour 9” wireless touch screen panel with a resolution of 800x480 pixels.
The interface is fully customizable with features such as multiple pages, customizable buttons layout, fonts and etc. It also supports pictures and graphics in JPG, PNG, BMP and other picture formats.
It can work as a stand alone control unit, deployed with a central control system or synchronize with multiple units for large area deployment.
Ideal for home automation, meeting room controls and smart rooms.
● 9” TFT 65k true colour LCD touch screen
● Touch screen backlight : LED backlight
● Memory: 64MB
● Elegant Design
● Resolution: 800×480 pixels
● Support multiple units synchronization
● Control method: wireless two-way
● Remote control distance: 20m
● Wireless transmission frequency: 433MHZ
● USB Communication port
● External power supply: DC12V/1.0A power supply
● Battery capacity: 4000 mAH
● Continuous working time: >8 hours
● Close standby time: up to 90 days
● Charging saturation time: about 5 hours
● Battery charging temperature: 20°-50°
| Display Mode: | 65K True Colour TFT LCD |
| Screen size: | 9” (22.9cm diagonal) |
| Touch Screen: | Resistive |
| Screen Resolution: | 800 x 480 pixels |
| Communication: | Control method: wireless two-way |
| Remote control distance: 20m | |
| Wireless transmission frequency: 433MHZ | |
| Internal Memory: | 64MB, Flash memory |
| Power Supply: | External power supply: DC12V/1.0A power supply |
| Dimension (WxDxH): | 225mm x 28mm x 141mm (Touch Panel); |
| 225mm x 125mm x 122mm (Touch Panel with Charging Station) | |
| Weight : | 708g (Touch Panel); |
| 1174g (Touch Panel with Charging Station) |
